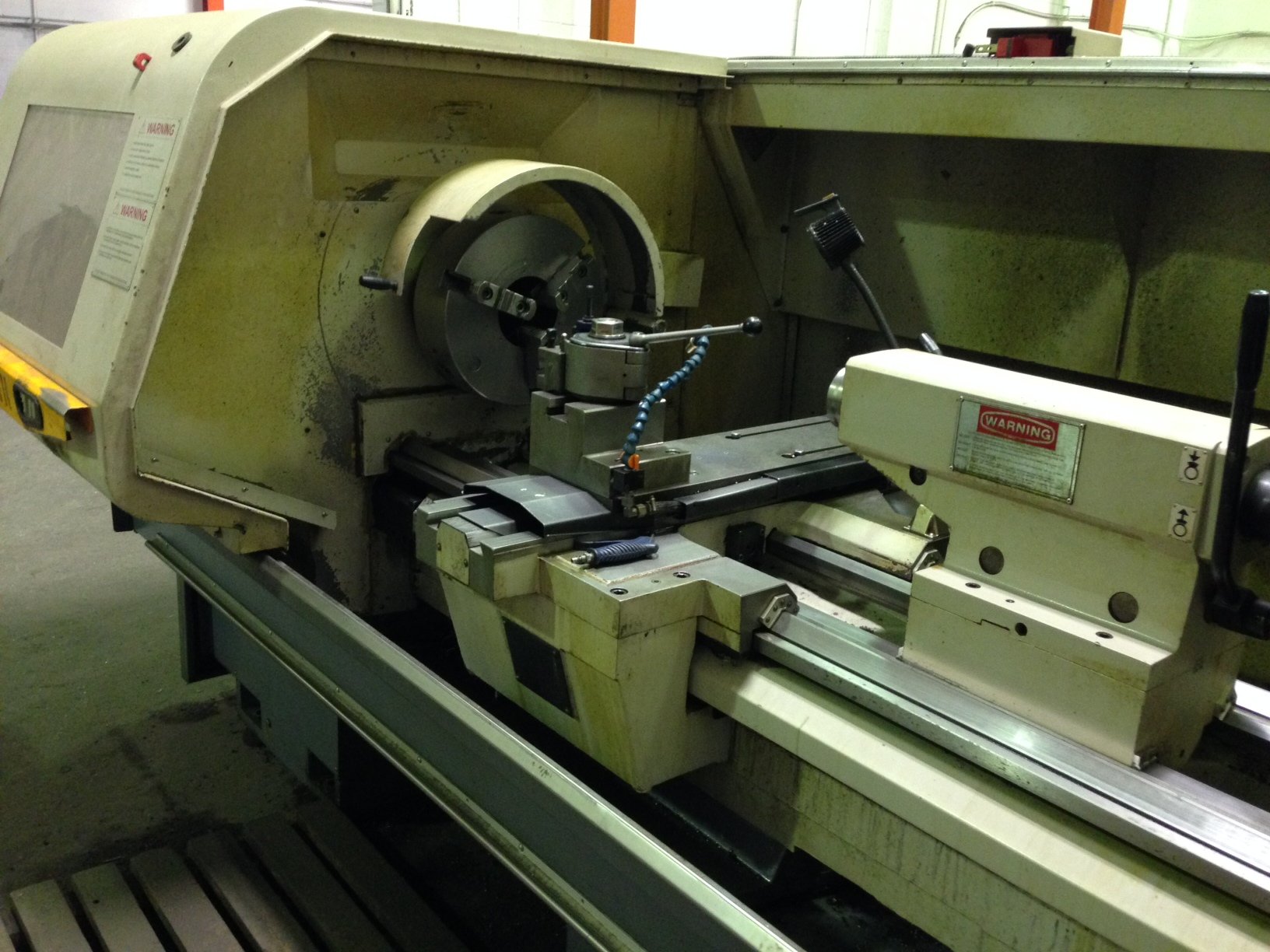

TUR630AMN 2008 Serial Number 080571, $55,000
3M length 5.5” spindle bore
2 steady rests 15.1” capacity
Siemens Conversational Control
Excellent stability with long boring bars
Adjust spindle speed while threading
Excellent thread repair with thread pickup
Machine is under power for inspection

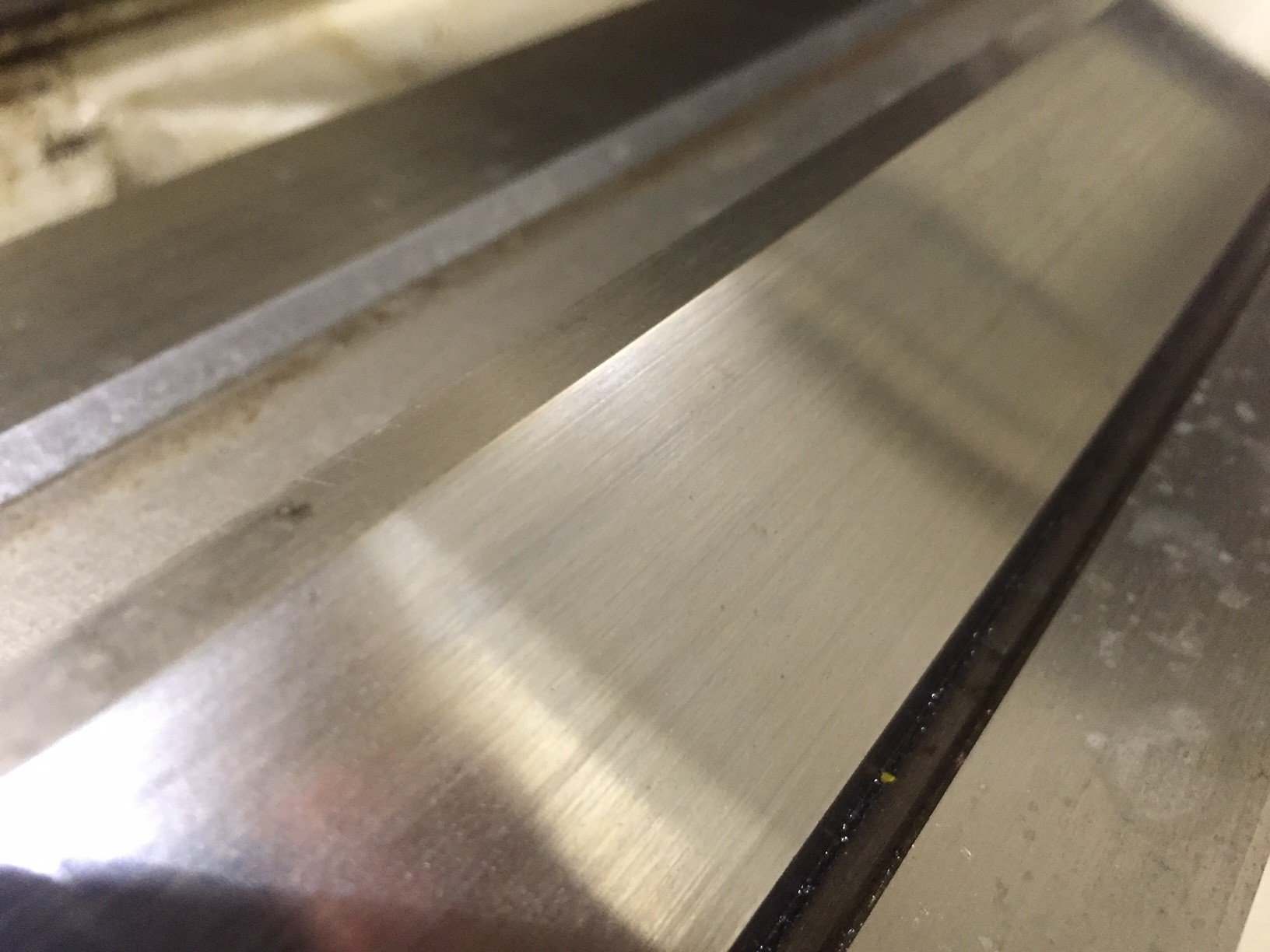

Very low hours, and in excellent condition

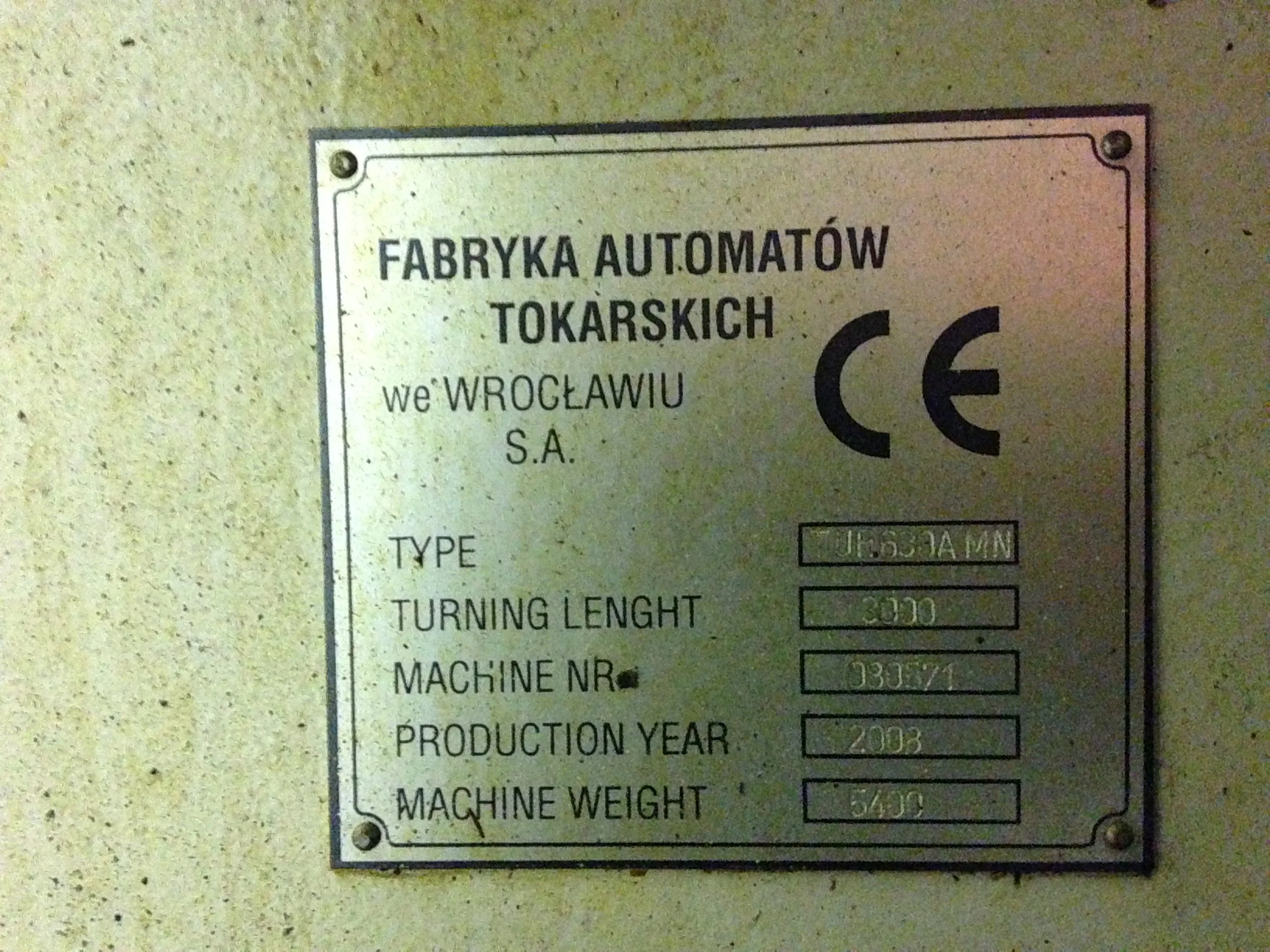

Make/Model TUR630AMN-3000
Year of Manufacture 2008
Serial No 80571 Control Siemens Sinumerik 840D sl ShopTurn
Chuck 16” 3 Jaw Steel Bison 435-367 2pc Jaws
Tool Post Quick Change Tool Post
CAPACITY
Distance between centres 3000 mm
Swing over bed 630 mm
Swing over saddle 370 mm Max.
Weight between centers (without Steadies) 2000 kg Max.
Weight in chuck only 600 kg
HEADSTOCK
Number of spindle ranges 2
Top spindle speed ranges l:2-430,ll:200-1850 rpm
Spindle nose (DIN 55029) 2 X D 1-11 camlock
Spindle inner taper 150 mm
Spindle bore 140 mm
Main drive moter power 18,5 kW Max.
Turning torque 2800 Nm Front bearing 250 mm
SADDLE
Cross slide travel X-axis 390 mm
Rapid travel Z-axis 8 m/min
Rapid travel X-axis 8 m/min
Feed force transverse 10 KN
Feed force longitudinal 15 KN
Ball screw Z-axis 40 mm
Ball screw X-axis 32 mm
Carriage length bearing on bedways 610 mm
Width of cross slideways 230 mm
QC Toolpost Type Multifix c size

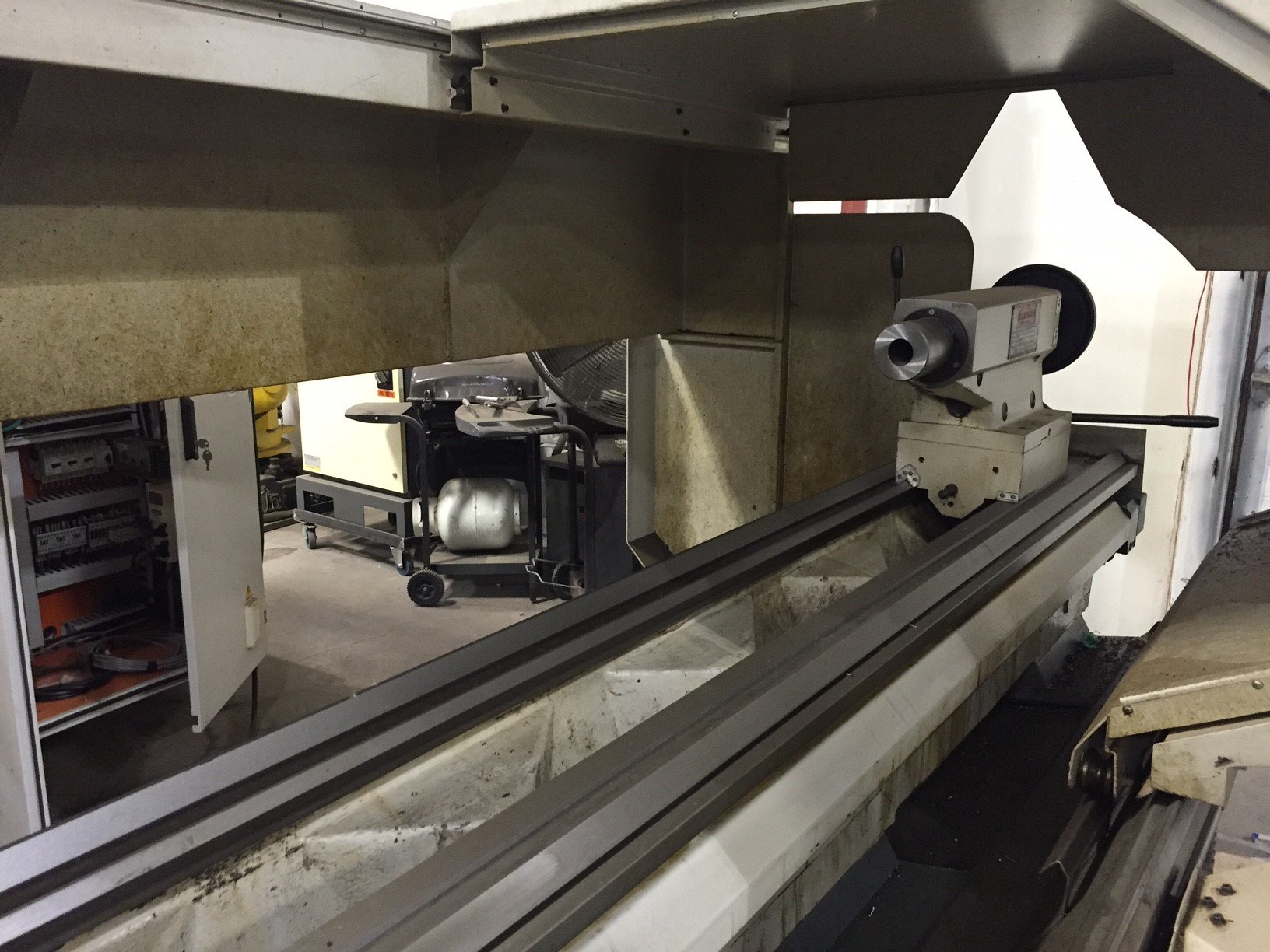

TAILSTOCK
Socket in tailstock spindle 5 MT
Tailstock spindle diameter 90 OR 100 mm
Tailstock spindle travel-manual: 200 mm
MOTORS ON THE MACHINE TOOL
Main drive motor rating at Nn = 1000 rpm/min :
S1 12 kW
S6-60% 15 kW
S6-40% 18.5 kW
Feed drive motor in X axis:
rated torque = 13,3 Nm
rated speed Nn = 3000 rpm
Feed drive motor in Z axis:
rated torque = 13,3 Nm
rated speed Nn = 3000 rpm
COOLANT PUMP
Motor Power 0.09 kW
Motor Speed 1350 rpm
Max Pressure 40 kPa
Max Volume 0.42 l/s
Coolant Tank Volume 120
GENERAL DIMENSIONS
Width of bed 433 mm
Total Length of Machine 5190 mm
Width of Machine 2300 mm
Height of Machine 1760 mm
Weight of Machine 5350 kg
ACESSORIES INCLUDED
2PC OD toolholders 1" square capacity
1PC Steady Rest 0-6.25"
1PC Steady Rest 6.25-15.1” capacity
